home | professional dehydrators | b.master plus

PROFESSIONAL DRYERS

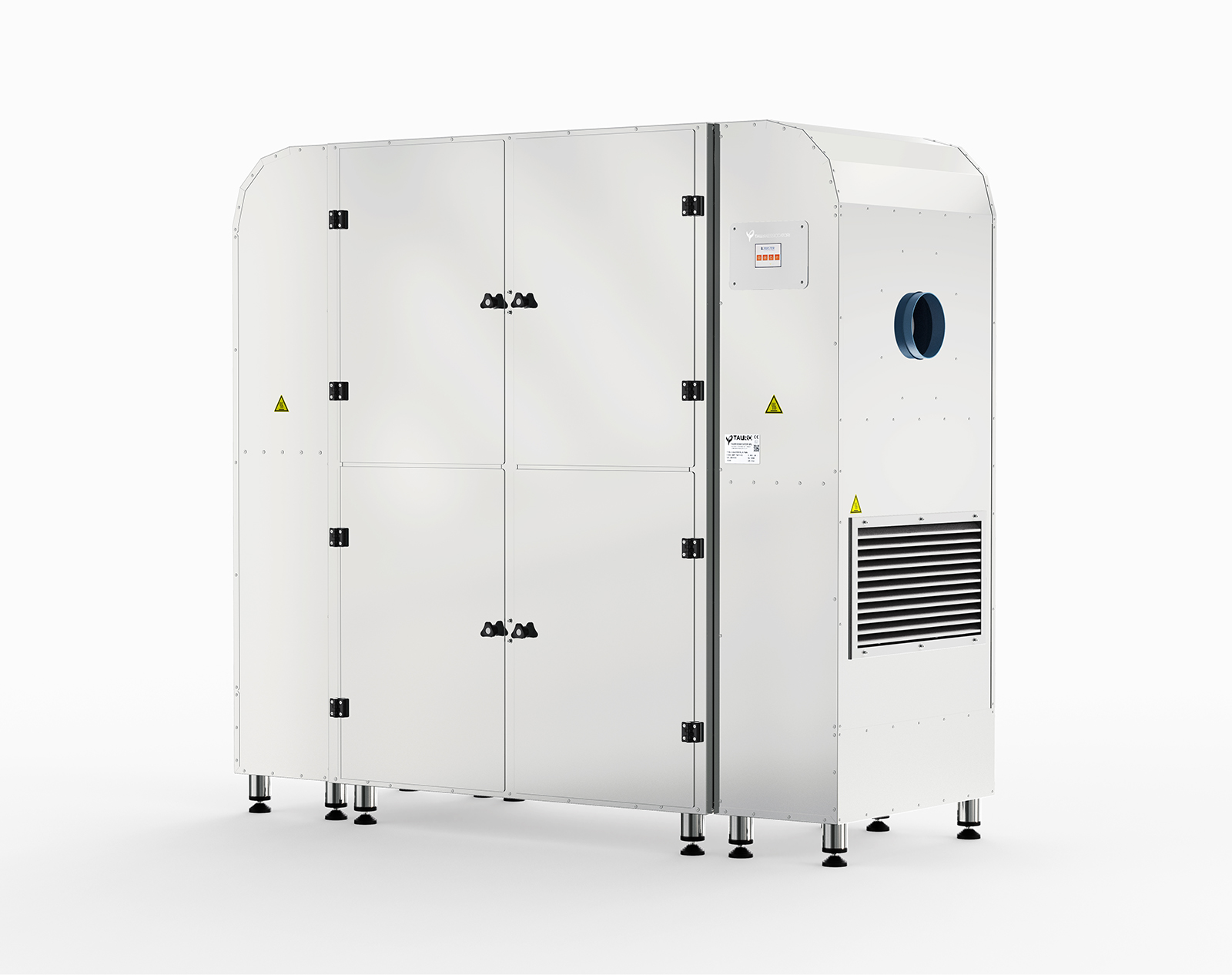

B.Master Plus

versatile and reliable perfect for any production

Power and delicacy in our most capacious product. B.Master Plus makes added value the strength of your business.
With all the Tauro technology.

For you it means:
drying in total safety thanks to materials certified for food contact.
Each of our dryers is a unique piece, handmade to your order.
Need help?
Telephone 0444 719046
Whatsapp +39 3388725259
commerciale@tauroessiccatori.com
Mon-Fri 9-12.30 | 14.30-17.30
Technical Specifications

25 m2 surface area

dimensions cm: 190 (W) x 175 (H) x 85 (D)

load capacity: up to 160kg

72 50 x 70 cm stainless steel shelves

Certified materials and technologies for superior drying and quality products.

Tauro's experts answer all your questions and needs. With us, you are never alone.

All Tauro systems are covered by a one-year European warranty.

Up to 25 square metres of available area

  • Compact dimensions and maximum robustness thanks to 100% Italian stainless steel construction, certified for food contact
  • Automated moist air disposal for maximum energy efficiency, with the automatic ventilation module , optional
  • B.Master Plus is ready-to-use: no installation required
  • Support and advice: our technicians are at your disposal

Expandable and versatile: discover the features

STANDARD

  • 72 shelves - 50x70x1,5 cm
  • 25 m2 total area
  • 5.1 kW allows working temperatures up to 65°C
  • OPTIONAL
  • 3.4 kW for drying products such as herbs
  • 7.5 kW for higher thermal output
  • 4 internal grids

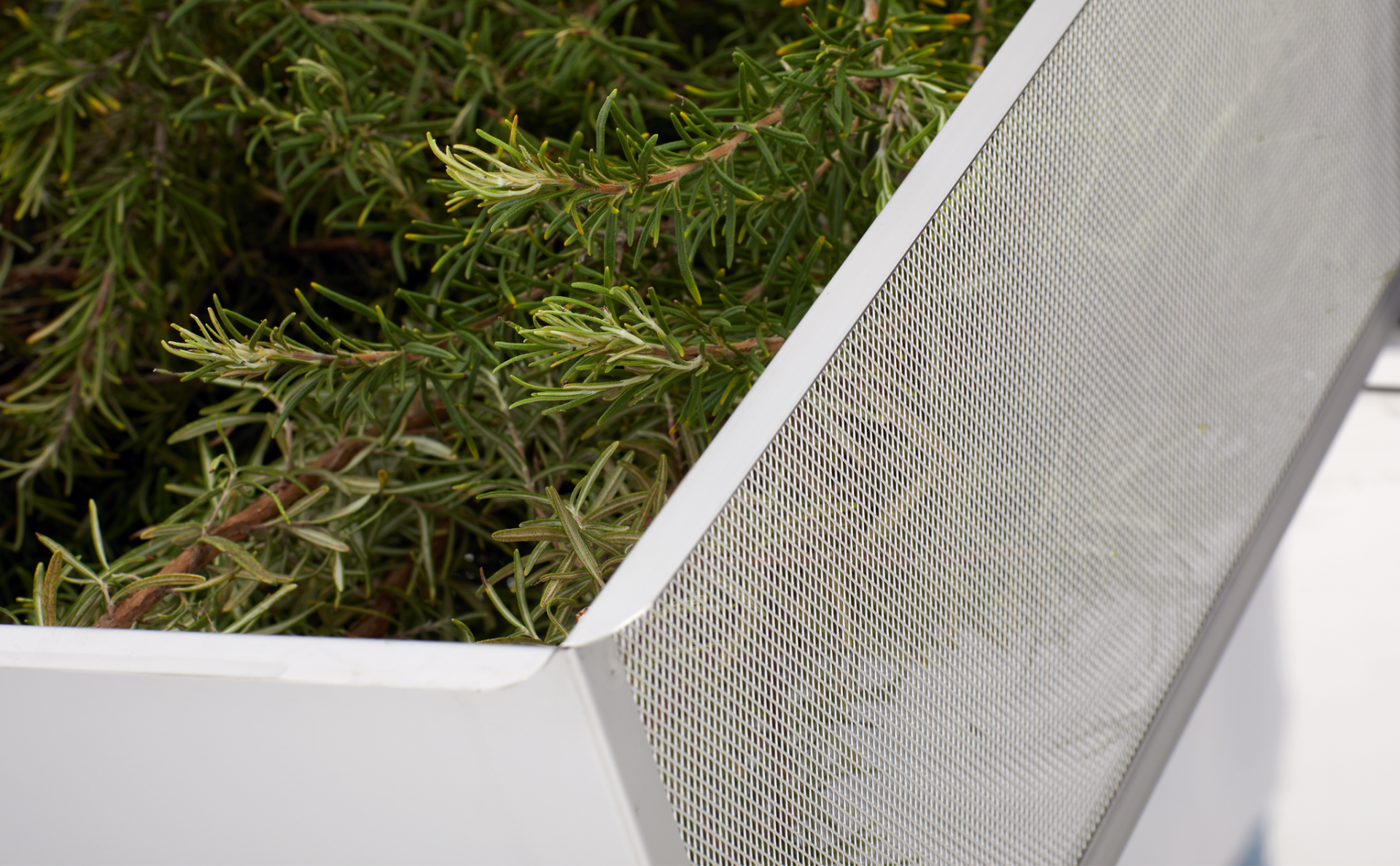

  • 12/24 box baskets for herbs and vegetable masses of 11 or 21 cm
  • Technical Information

    Data sheet
    •  Number of compartments: 72 (shelf size 70 x 50 cm)
    •  Total usable surface area: 25 m²
    •  Maximum load capacity: approx. 300 kg
    •  Average daily output: 60/100 kg
    • External dimensions (WxHxD): 190 x 175 x 85 cm
    • Empty weight: approx. 270 kg
    • Thermal output: 3.4 kW, 5.1 kW, 7.5 kW;
    • Electric fan: 450 mm
    • Fan power: 80 W.
    • Temperature control: electronic with LED screen.
    • Humid air evacuation adjustment: manual via wing flap or automatic via ducted extractor
    • Power supply: 400 V - 50 Hz

    B.Master Plus is the largest model in the range, with the standard equipment of all our dryers.

    •  100% stainless steel construction
    •  Electronic temperature control
    •  Thermal output: 3.4 kW , 5.1 kW, 7.5 kW; ideal for every requirement
    •  Air exchange adjustment system

    Description

    B.Master Plus meets the needs of small/medium processors. It is equipped with a 5.1 kW electric heat source as standard, which has been replaced by a 3.4 kW heating unit for drying delicate products that require lower temperatures (e.g. medicinal plants). The electric heating system can be supplemented or replaced with water heating batteries to utilise alternative energy sources. The B.Master Plus also has a modular structure and can therefore be expanded with a second drying module for higher productivity.



    Automatic ventilation module

    It autonomously detects and disposes of moisture-saturated air, channelling it to the outside. The system provides optimised and effective air circulation as well as perfect humidity control for more efficient, faster and more economical drying.

    Additional drying module (optional)



    This is an additional drying chamber, directly connected to the B.Master dryer, which allows its capacity to be doubled.

    Documents

    Biosec Master Plus dryer - Presentation

    Biosec Master Plus Dryer- Presentation

    Sécheur Biosec Master Plus - Présentation

    Secador Biosec Master Plus - Presentación

    Comparison Table

    All different models of domestic dryers
    Biosec ProB.MasterB.Master Plus
    Number of shelves124072
    Shelf dimensions60x40 cm70x50 cm70x50 cm
    Total useful surface area3mp14sqm25sqm
    External dimensions88x55hx63 cm192x140hx82 cm192x175hx82 cm
    Thermal power2.1 kW3.4 kW single-phase3.4 kW single-phase
    Temperature controlElectronically programmable with LCD touchscreenElectronics with LED displayElectronics with LED display
    Damp air disposalAutomatic with RH probe and touchscreen displaymanual via finned damper
    or automatic (optional)
    manual via finned damper
    or automatic (optional)
    Comparing features of professional models
    BIOSEC PRO
    Number of shelves12
    Shelf dimensions60x40 cm
    Total surface area3sqm
    External dimensions88x55hx63 cm
    Thermal power2.1 kW
    Temperature controlElectronically programmable with LCD touchscreen
    moist air disposalAutomatic with RH probe and touchscreen display
    B.Master
    B. MASTER
    Number of shelves40
    Shelf dimensions70x50 cm
    Total surface area14sqm
    External dimensions192x140hx82 cm
    Thermal power3.4 kW single-phase
    5.1 kW three-phase
    Temperature controlElectronics with LED display
    Damp air disposalmanual via finned damper
    or automatic (optional)
    B. MASTER PLUS
    B. Master Plus
    Number of shelves72
    Shelf dimensions70x50 cm
    Total surface area25sqm
    External dimensions192x175hx82 cm
    Thermal power3.4 kW single-phase
    7.5 kW three-phase
    Temperature controlElectronics with LED display
    Damp air disposalmanual via finned damper
    or automatic (optional)

    Faq

    What is the delivery time for B.Master Plus?

    B.Master is produced and delivered in a very short time. At specific times of high demand during the year, times may increase slightly. For more precise information, please contact us and request a dedicated quote!

    Is B.Master Plus covered by warranty?

    Of course: as per current regulations, the warranty is already active at the time of purchase and offers 12 months' cover for VAT-registered purchases.

    What are the dimensions of B.Master Plus?

    B.Master Plus measures 192cm x 175cm (H) x 82cm, has an unladen weight of approximately 270 kg and houses 72 stainless steel shelves inside, providing 25sqm of drying surface.

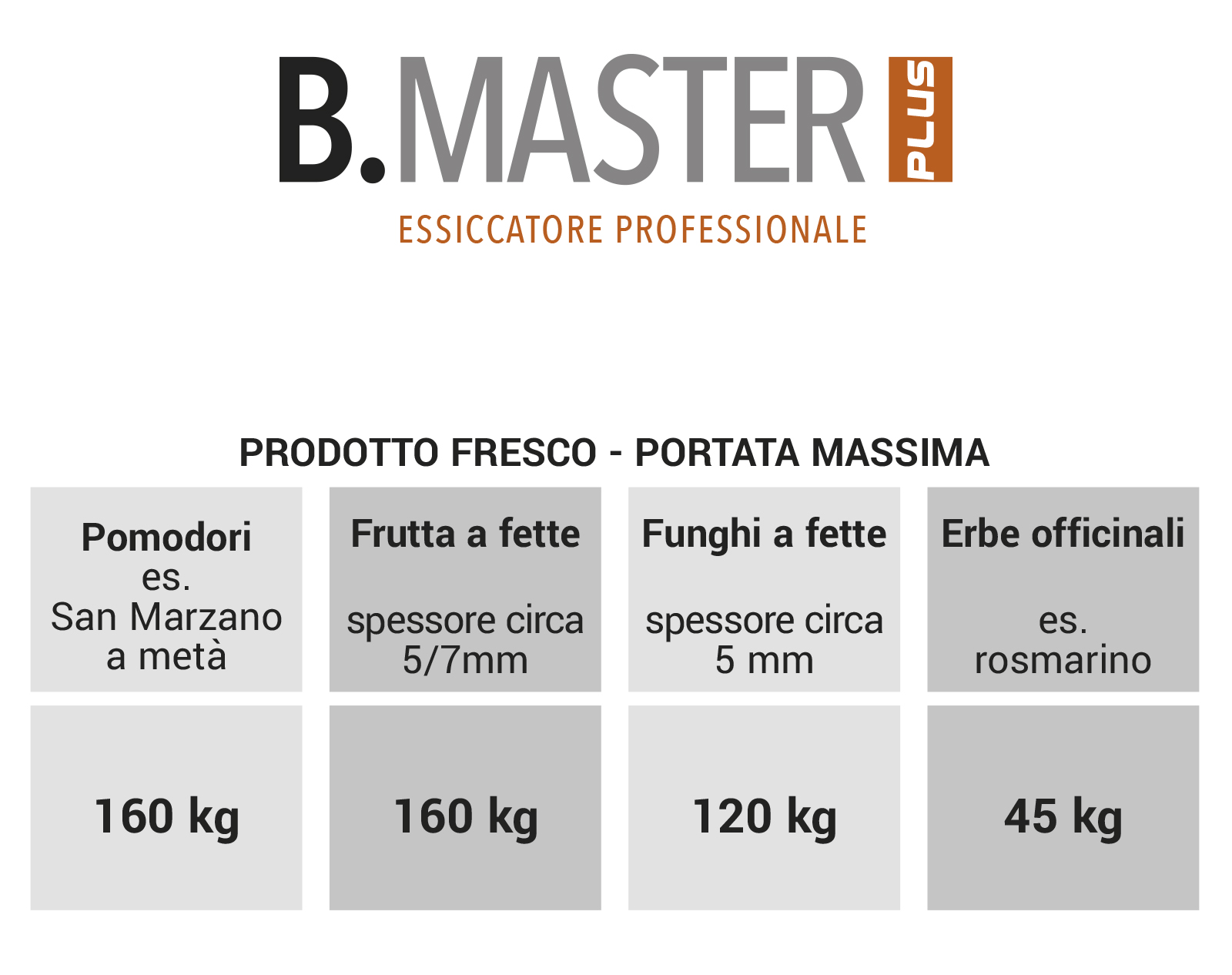

    How many kilos of product can I dry with this machine?

    It depends! On the product, how you prepare it and how you place it on the baskets. We have created some reference tables which you can find in the catalogue, but to get an exact idea of how much product you can load, arrange the product on a square metre of surface, just as you would in the dryer. Then multiply the weight of the arranged product by the drying surface of the machine, in this case 25 square metres.

    How much does the dryer consume per cycle?

    The power expressed in kW expresses the maximum energy consumption when heating elements and fans are both operating at full capacity. The precise consumption depends mainly on the ambient temperature outside the machine and the amount of total moisture in the product being dried, most of which must be disposed of in the first few hours of drying. Remember that drying is a process that tends towards equilibrium and that, in the very first hours of drying, the aim is to eliminate as much water as possible, especially that present on any wet surface of the product. Moisture is thus disposed of conspicuously at first, then more and more slowly, so the temperature inside the machine will tend to be lower at first, then stabilise. For this reason, electricity consumption will be much higher at the beginning, then decrease considerably as time goes by.

    Where does the moisture extracted from the product go?

    The moisture is disposed of in the room where you have placed the dryer, which for this reason must be sufficiently large and well ventilated. B.Master Plus can provide for the connection of a damp air disposal pipe, in case the room where the machine works is not large enough or ventilated enough to accept the moisture extracted from the products, or if the product has a particularly strong or unpleasant odour. If the automatic ventilation module is also purchased, it will be sufficient to connect a round tube directly to the air outlet.

    Is it necessary to provide a dedicated space in which to place the dryer in my company?

    Yes. If you dry in order to resell the dried product, you will need a dedicated space that complies with European legislation on the safety and hygiene of food processing environments and foodstuffs (EC Regulation 852/2004 at the time of writing) by adopting a control plan according to the H.A.C.C.P. system. This space does not necessarily have to be for the exclusive use of the dryer, but it must still comply with the regulations in force.

    Do I need a technician to install the dryer?

    No. B.Master Plus is ready to use. All you have to do is take it out of its packaging, place it in the space you have provided and plug it in. Should some components be delivered disassembled for safety reasons during transport, we will enclose all assembly instructions, a quick and easy operation requiring no special equipment.

    With the automatic ventilation module, can I decide or monitor the final humidity of my product?

    The automatic ventilation module of the B.Master Plus is designed to keep the humidity level inside the dryer under control. Product moisture can be measured with special instruments, different and specific for each type of dried food.

    Is B.Master Plus equipped with a timer? Can I set it to switch off, e.g. at night?

    Yes, it is possible to install a timer as an option. This will only switch off the heating elements, while the internal fan will remain on, both to maintain continuous ventilation inside the dryer and prevent the product from regaining moisture, and as a safety system in case the heating elements do not switch off.
